How to Choose the Suitable Number of Fiber Cores for Your Network: A Guide by TARLUZ

When designing or upgrading your network infrastructure, one of the most important decisions you’ll face is choosing the appropriate number of fiber cores. Fiber optic cables are the backbone of modern communication systems, offering high-speed data transmission over long distances with minimal loss. But how do you know how many fiber cores you need for your network? At TARLUZ, we understand that selecting the right fiber core count is critical for network performance, scalability, and cost-effectiveness. In this guide, we’ll help you determine the right number of fiber cores for your specific application.

Understanding Fiber Cores and Their Role in Your Network

Before we dive into the details, let’s briefly explain what fiber cores are. Fiber optic cables consist of multiple thin strands of glass or plastic, known as “cores.” These cores carry the data signals via light. The number of cores in a cable determines how many separate data paths the cable can support.

The number of cores you choose directly impacts the capacity and flexibility of your network. A single core fiber can handle a single data stream, while a multi-core fiber can carry multiple data streams simultaneously, significantly increasing bandwidth and reducing the need for additional cables.

Key Factors to Consider When Choosing the Number of Fiber Cores:

Data Transmission Needs

The primary factor to consider when selecting the number of cores is your data transmission requirements. The more cores a fiber optic cable has, the higher the total data bandwidth it can provide. For a simple internet connection or small local area network (LAN), a single-core or low-core-count fiber might be sufficient. However, for larger networks, especially those requiring high-capacity connections such as data centers or metropolitan area networks (MANs), multi-core fibers will be necessary.

Future Scalability

One of the main advantages of fiber optic networks is their scalability. If you anticipate future network expansion, it’s wise to overestimate your fiber core needs. For example, you might initially only need a handful of cores, but in 5 to 10 years, your network may require more bandwidth. By opting for a cable with more cores than you currently need, you ensure your network can easily scale as demand grows, without requiring major infrastructure upgrades.

Distance and Signal Loss

The distance the fiber cable will cover is another key consideration. Over long distances, signal loss (attenuation) can occur, especially in multi-mode fiber. Multi-core fibers can be more efficient in reducing attenuation by distributing the data over multiple paths. In some cases, single-core fibers may suffice for shorter distances, but for longer runs, choosing a higher-core fiber will ensure better reliability and data integrity.

Network Design and Topology

The architecture of your network also plays a role in determining the appropriate fiber core count. For example:

Point-to-Point Networks

These networks may only require a few cores per connection, depending on the number of devices and required bandwidth.

Ring Networks

These typically need more cores to ensure redundancy and continuous communication in case of a failure.

Star Networks

A star topology with multiple nodes might require fibers with more cores to support the connections between central hubs and peripheral devices.

Cost Considerations

While it’s tempting to go for fiber cables with the highest core count to prepare for future needs, cost is always an important factor. Multi-core fibers tend to be more expensive than single-core options. However, you should weigh the long-term savings that come from avoiding network upgrades and disruptions by investing in a fiber optic cable with a higher core count upfront.

How Many Fiber Cores Do You Need?

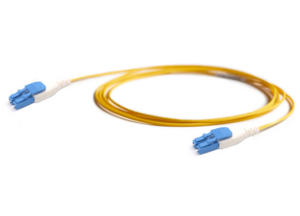

Fiber Patch Cables (1 or 2 Fiber Cores)

Simplex Fiber Patch Cabels (1 Fiber Core):

Applications: Point-to-point connections, such as short-distance links between devices.

Advantages: Low cost, easy installation.

Disadvantages: Limited scalability.

High-Density MTP/MPO Fiber Cables(12/24 Cores)

MPO-24 Fiber Cable

Applications: Medium-sized enterprise networks, data center backbones.

Advantages: Supports multiple device connections and offers good scalability.

Disadvantages: Higher cost.

144 Cores

Applications: Large data centers, telecom backbone networks.

Advantages: Supports massive data transmission and high-density connectivity.

Disadvantages: High initial cost and installation complexity.

How to Calculate the Required Number of Fiber Cores

Here’s a simple calculation method:

Determine the Number of Connected Devices

Count the number of devices that need to be connected.

Calculate Redundancy Needs

Typically, 20%-30% redundancy is recommended.

Choose the Fiber Core Count

Select the appropriate fiber core count based on the calculation.

In Conclusion

Choosing the right number of fiber cores for your network is crucial to ensuring you get the best performance, scalability, and cost-effectiveness for your needs. By considering factors like bandwidth, distance, network topology, and future expansion, you can make an informed decision that will serve your network’s needs for years to come.

If you’re still unsure about which fiber core count is best for your network, don’t hesitate to contact the experts at TARLUZ. We’re here to help you navigate the complexities of fiber optic networks and find the perfect solution for your unique requirements.
